Fully Autonomous Operation

Autonomous Route Planning

Night Flight Function

50mm Thickened Carbon Fiber Arms

Super Anti-Impact Performance

Payload Capacity: 100kg (200 catties), Maximum Take-off Weight: 215kg (430 catties) – Extra-Large UAV

Downward Folding Design for Easier Transportation

Equipped with More Powerful Power to Ensure Sufficient Redundancy

1080P HD Gimbal

Standard 5.5-inch High-Brightness Screen Remote Controller

Full-Machine Modular Structure

Shiya Low Altitude Technology

Ground-Air Dual Helix as Strategic Pivot: A Vehicle-Grade UAV Intelligent Manufacturing Platform

A cutting-edge technology service platform supported by an independent intellectual property core technology system and a top-down business structure. Relying on an interdisciplinary think tank of top talents, it continuously leads the industry's technological innovation trend.

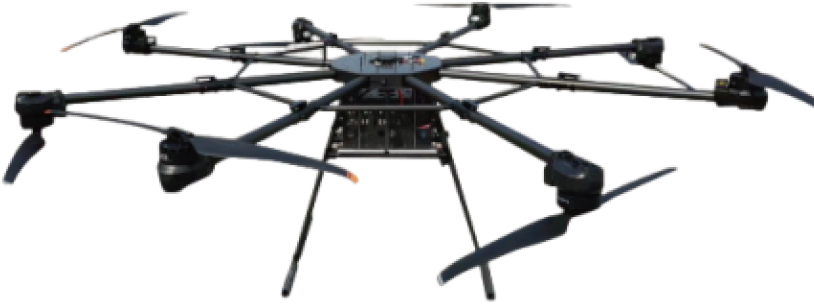

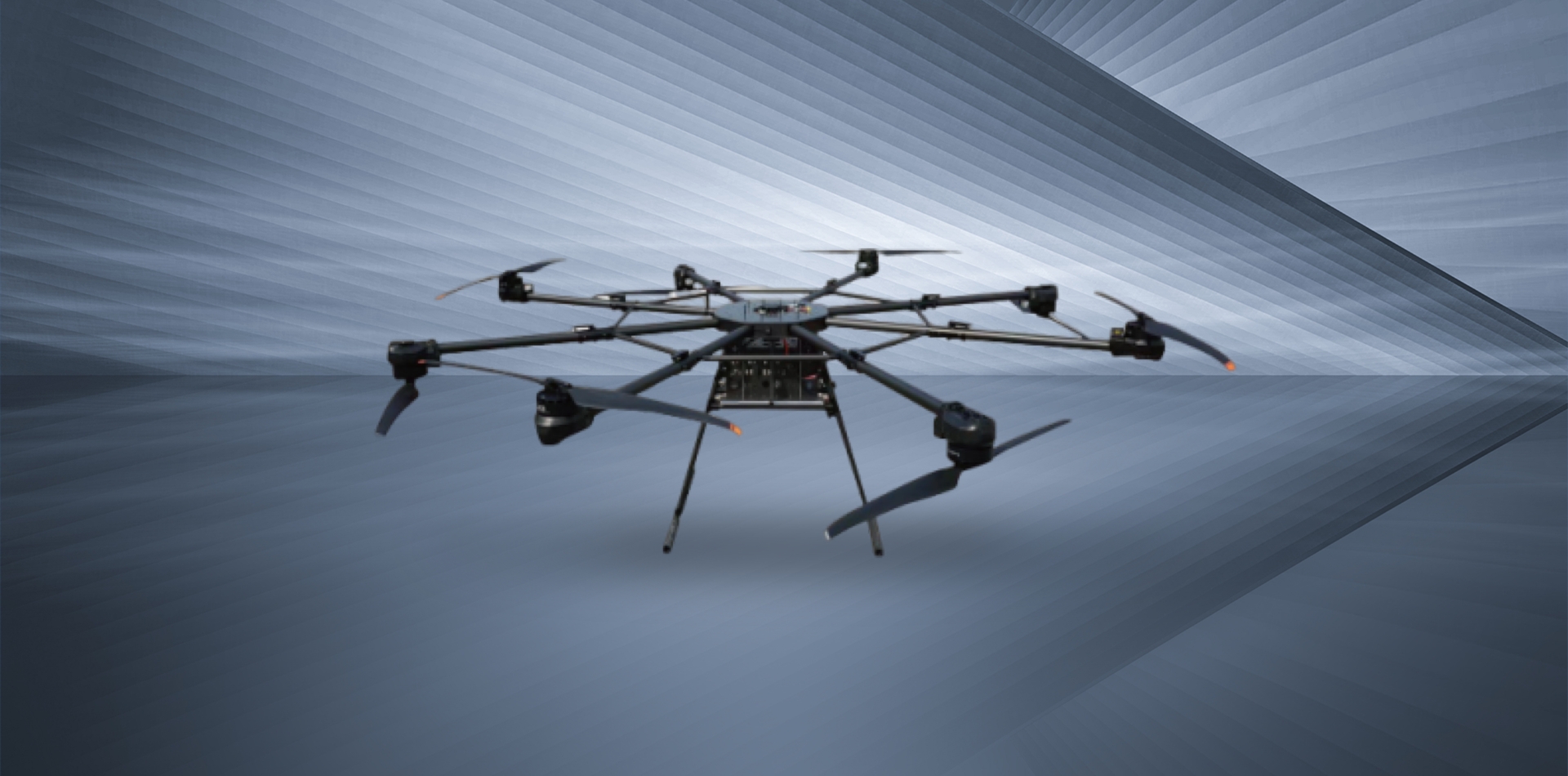

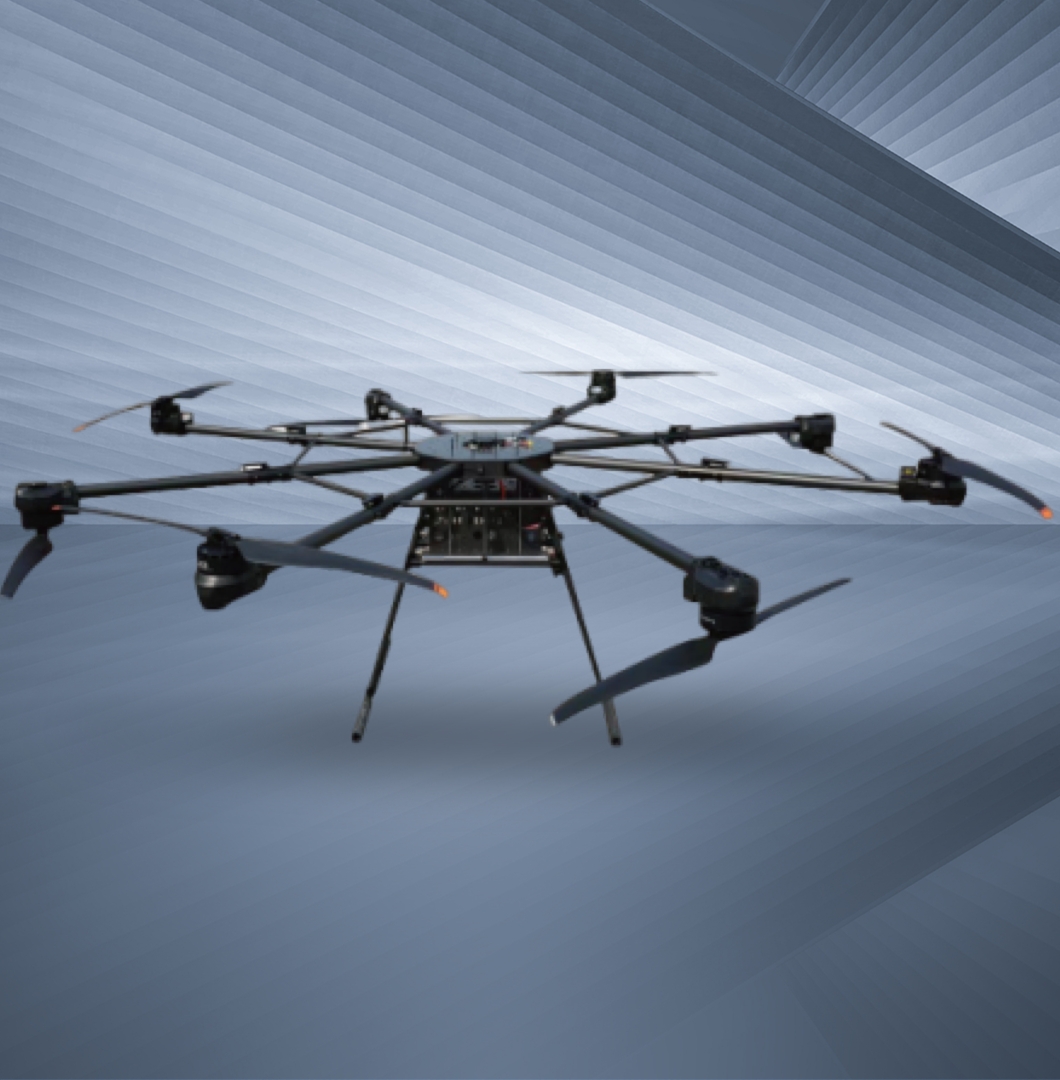

SY-012

Propulsion

Maximum Payload Capacity

100KG

Maximum Safe Take-off Weight

215KG

Flight Speed

1-12m/s

Wind Resistance

Level 6 / 13.8m/s Wind Speed

Safe Take-off & Landing Wind Speed

≤ Level 7

Aircraft Empty Weight

59kg

Flight Altitude

≤5000m

Operational Endurance

18-20min

Scenarios

Lifting/Logistics/Delivery, etc.

Attitude Tilt Angle

15°-25°

Dimensions

Wheelbase

3230mm

Quality Assurance

Flight Control System

4-IMU / Redundant GNSS

Positioning System

Beidou/GPS/Galileo

Power System

X13
