Large Payload Capacity

The SY002 can carry a maximum effective payload of 18kg, supporting various high-performance payloads. You can customize the configuration according to your needs.

Long Endurance

With a full-load fuel consumption of 0.96L/H and a maximum endurance of 15 hours, it can meet the requirements of long-duration and large-area operations, which means reducing your workload and saving significant costs.

Long Data Link

The maximum 200km control link greatly extends the SY002's flight range, giving it a huge advantage in missions such as long-range surveillance.

Easy Operation

The SY002 features functions such as vertical take-off and landing (VTOL), automatic pre-flight checks, automatic mission execution, and emergency automatic return, ensuring easy use.

Fully Automatic

The SY002 integrates an advanced flight control and navigation system, enabling fully autonomous 24/7 flight under complex weather conditions.

Aerospace-Grade Reliability

The UAV can automatically recover from faults and balance abnormal drive units, and can also automatically return and land in emergency situations.

Strong Environmental Adaptability

It can fly under conditions of high altitude, high humidity, low temperature, and light rain, equipped with a self-heating airspeed tube and intelligent batteries.

Mobile Take-off and Landing

The SY002 can also take off and land from mobile platforms, making maritime operations more efficient and flexible.

Shiya Low Altitude Technology

Ground-Air Dual Helix as Strategic Pivot: A Vehicle-Grade UAV Intelligent Manufacturing Platform

A cutting-edge technology service platform supported by an independent intellectual property core technology system and a top-down business structure. Relying on an interdisciplinary think tank of top talents, it continuously leads the industry's technological innovation trend.

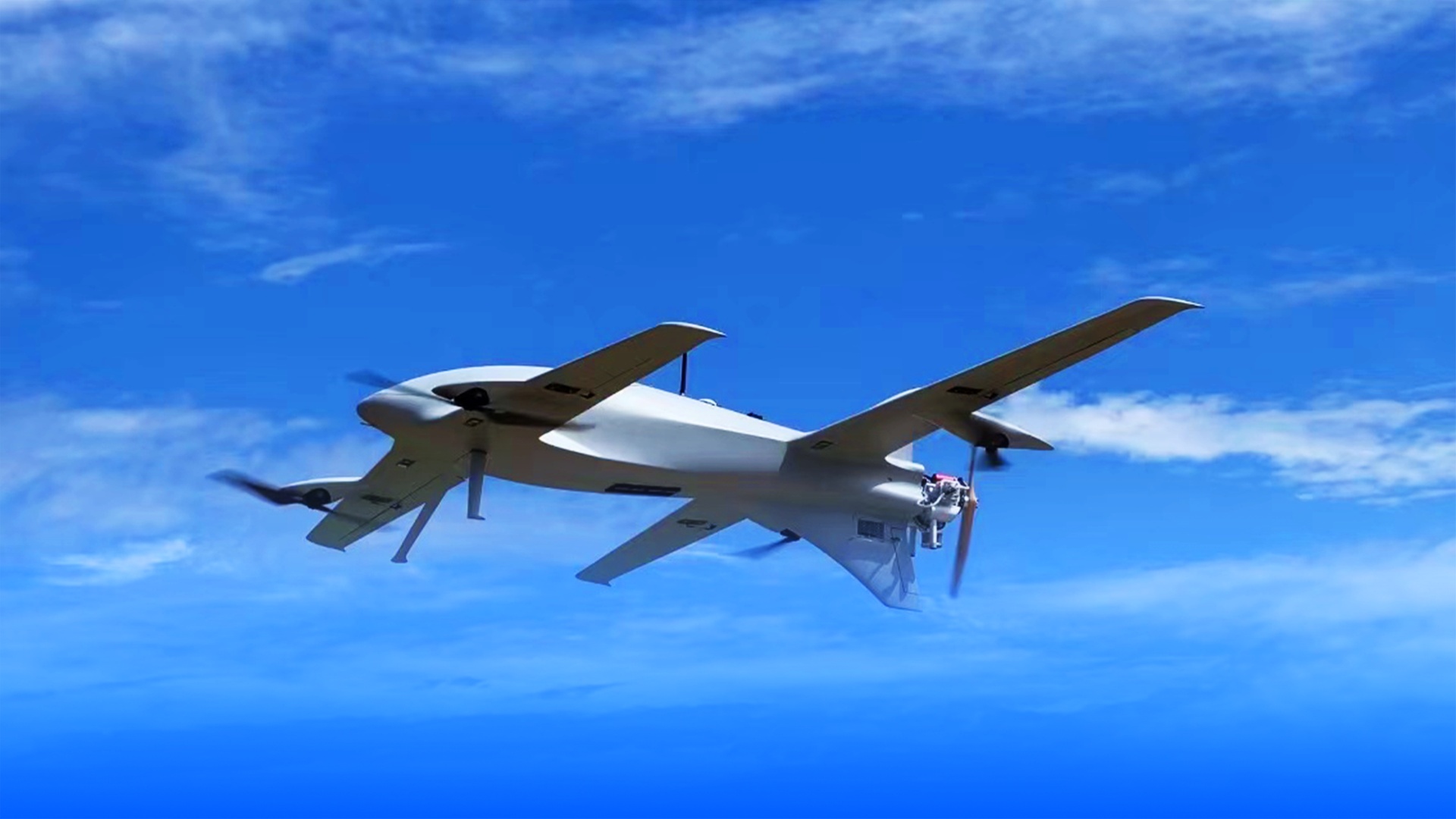

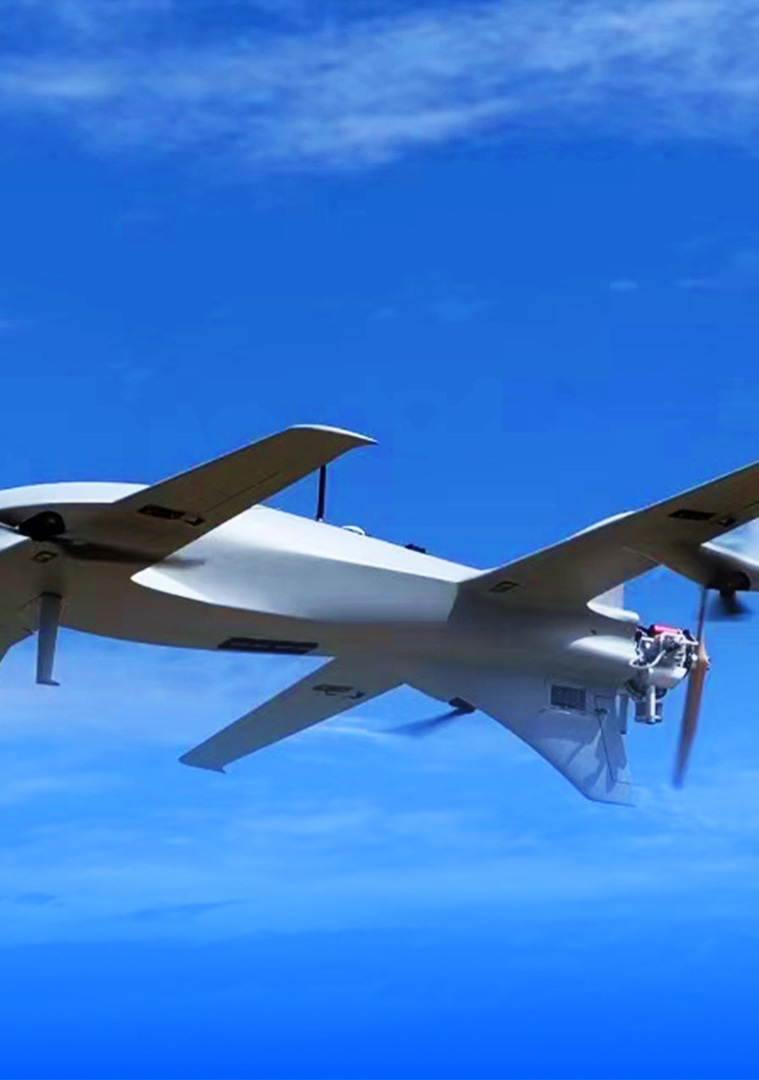

SY-002

Propulsion

Maximum Payload Capacity

18KG

Maximum Safe Take-off Weight

40KG

Cruise Speed

25m/s

Maximum Range

1220km

Safe Level Flight Speed

22-40m/s

Service Ceiling

5000m

Operating Temperature

-20℃-45℃

Endurance

15h

Dimensions

Packaging Dimensions

2120X900X640mm

Overall Length

2001mm

Height

696mm

Wingspan (Front/Rear)

2820mm/3744mm

Quality Assurance

Airframe Protection Class

IPX4

Airframe Material

Aerospace Carbon Fiber Composite Material
