Superior Performance
Vertical Take-off and Landing (VTOL) with a service ceiling of 5,000m, and a maximum duration of up to 210 minutes depending on the effective payload.

High Precision
Integrated with high-precision MEMS inertial sensors, a high-performance CPU, and a dual-GPS positioning system, featuring strong EMI resistance and vibration resistance.

Modular Design
Adopts a quick-connect structure and can be disassembled into modular components for transportation in SUV-type vehicles.

Fully Automatic
No radio control required. It supports one-click take-off and landing, ensuring safety and convenience, with a landing accuracy of less than 15 centimeters.

Diversified Mission Payloads
With an effective payload capacity of up to 1.6kg, it offers multiple options such as aerial cameras, radars, electro-optical pods, aeromagnetic sensors, and spectral sensors.

High Reliability
It has an excellent aerodynamic layout, high load capacity, and high flight stability, with low noise and easy operation and maintenance.

Safe Flight Performance
Equipped with dual GPS and dual compasses, along with an advanced flight control and navigation system. It will automatically return when GPS or data link signals time out.

Strong Environmental Adaptability
Comes with a self-heating airspeed tube, allowing flight in conditions such as high altitude, high humidity, low temperature, and light rain.
Shiya Low Altitude Technology
Ground-Air Dual Helix as Strategic Pivot: A Vehicle-Grade UAV Intelligent Manufacturing Platform
A cutting-edge technology service platform supported by an independent intellectual property core technology system and a top-down business structure. Relying on an interdisciplinary think tank of top talents, it continuously leads the industry's technological innovation trend.

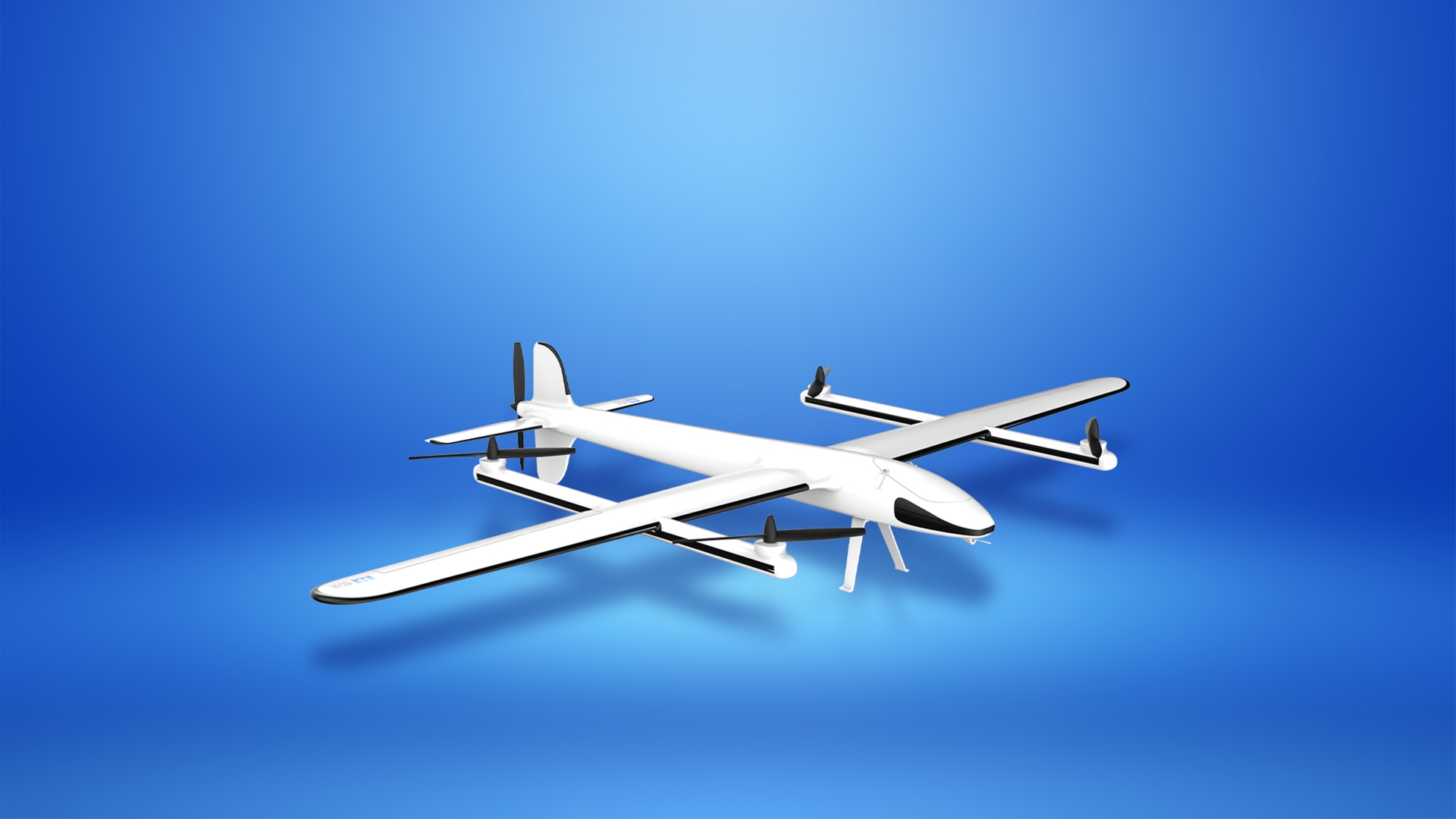

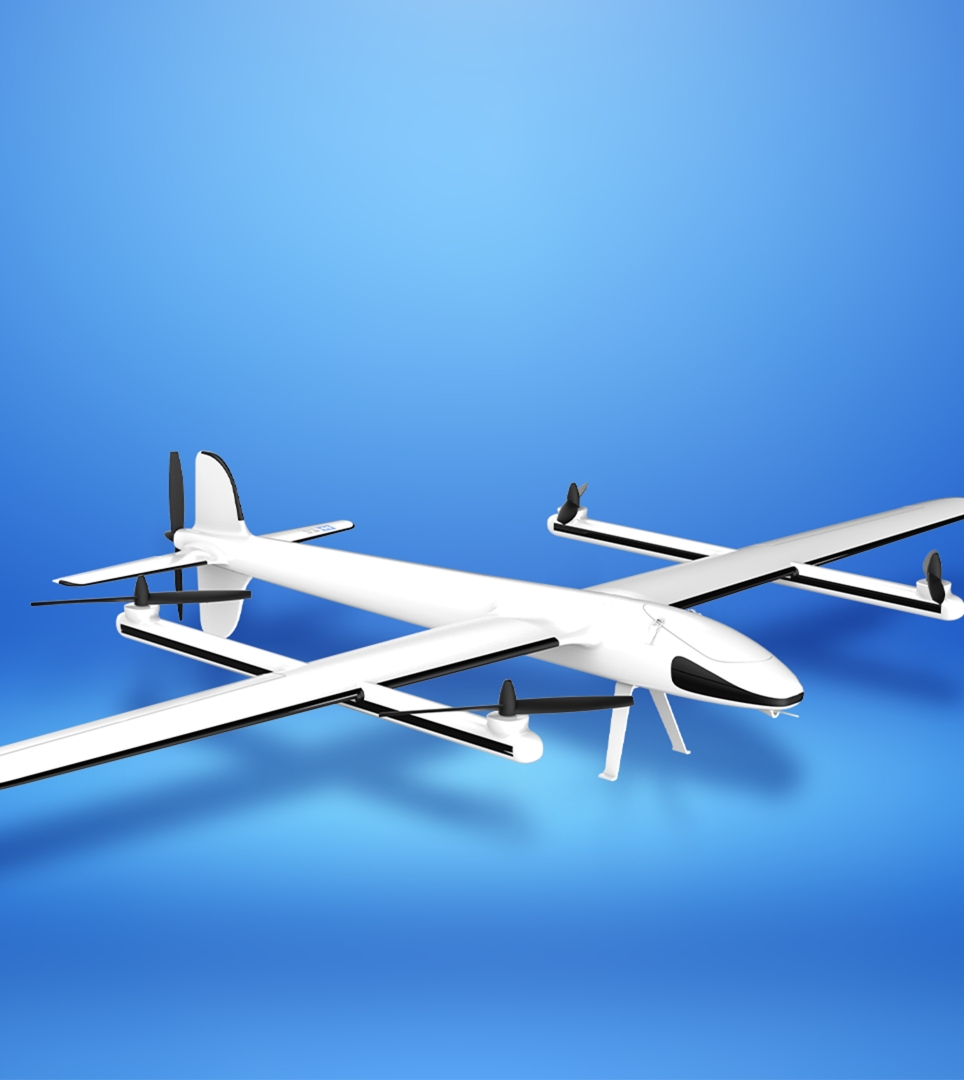

SY-006
Propulsion
Maximum Payload Capacity
1.6KG
Maximum Safe Take-off Weight
10KG
Cruise Speed
25m/s
Maximum Range
240km
Safe Level Flight Speed
18-35m/s
Service Ceiling
5000m
Operating Temperature
-20℃-45℃
Dimensions
Packaging Dimensions
1580X400X440mm
Overall Length
1519mm
Height
356mm
Wingspan
2398mm
Quality Assurance
Airframe Protection Class
IPX4
Airframe Material
Aerospace Carbon Fiber Composite Material
